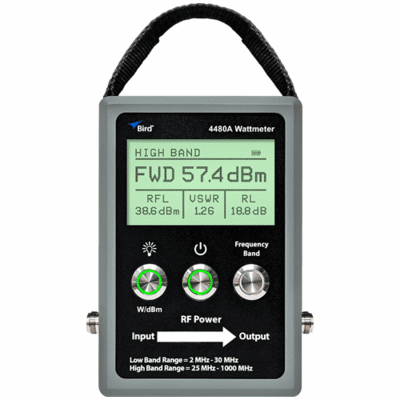

4480A, Element-Free Digital-Ready

RF Power Meter

Beyond Simple Signals: Master Digitally Modulated Formats

The Bird 4480A Wattmeter redefines RF power measurement with precision and simplicity. Its element-free design delivers accurate true average power measurements for Continuous Wave (CW) and digitally modulated signals from 2 MHz to 30 MHz and 25 MHz to 1000 MHz. Switch between Watts and dBm effortlessly. With added Return Loss (RL), plus Forward Power, Reflected Power, and VSWR, it consolidates critical data for seamless operation and performance.

Ideal for telecommunications, broadcasting, industrial RF systems, research and development and more, the 4480A is built for demanding environments, offering unmatched accuracy (±4%) and power handling up to 10,000 Watts.

Key Features

• Element-Free Design: Perform measurements across multiple frequency bands without managing separate elements, saving time and effort.
• True Average Power Measurements: Ensure accurate power readings for both CW and digitally modulated signals in one device.
• Wide Frequency Range: Measure signals from 2 MHz to 1000 MHz, accommodating a broad spectrum of RF applications.
• High Power Handling: Measure up to 10,000 Watts, providing capability for high-power applications.
• Precision Accuracy: ±4% accuracy ensures ensures reliable power measurements for optimized system performance.
• Customizable Readings: Display measurements in either Watts or dBm, tailored to your application.

Applications

• Telecommunications: Ensures optimal performance in wireless systems like cellular, satellite, and Wi-Fi.
• Broadcasting: Maintains signal integrity in TV and radio transmission.
• Wide Frequency Range: Supports a wide frequency range from 2 MHz to 1000 MHz, making it adaptable to various RF applications.
• Military Communications: Ensures reliable performance of tactical and strategic RF systems.
• Aerospace & Defense: Supports precision in complex communication and radar systems.

Measurement

• Frequency Range:
  • Low Band: 2 MHz to 30 MHz
  • High Band: 25 MHz to 1000 MHz

• Power Range:
  • Low Band (2 MHz to 30 MHz): 10 W to 10 kW
  • High Band (25 MHz to 1000 MHz): 1 W to 1 kW


• Accuracy: ±4% of reading (±0.18 dB)
• Peak to Average Ratio: 10 dB (max.)
• Directiviy: 25 dB (min.), 30 dB (typ.)
• Impedance: 50 Ω nominal
• Insertion: 50.1 dB (max)
• VSWR: 1.2:1.0 (max)
• Input Attenuator Range: 0 to 30 dB, 1 dB step

System

• LCD Display: Transflective, white LED backlit
• Battery:
• Type: Internal, NiMH 6-AA
• Operating Time: 8-10 hours (min.)
• Charge Time: 6-8 hours typical (Recharge on or off)
• Calibration Interval: Recommended interval of 12 months
• Power Supply: DC 12V, 2A (0.6A max. draw)

Environmental

• Temperature:
• Operating: 0 to 50 °C, (32 to 122 °F)
• Storage: -40 to 71°C (-40 to 159.8 °F)

Physical

• Size (W x H x D): 5" x 7.3" x 2.65" (127 x 185.42 x 67.31 mm)
• Weight: 2.9 lb (1.32 kg) typical, including batteries
• RF Connectors:
• Input: Type N(f); QC type, field changeable
• Output: Type N(f); QC type, field changeable
